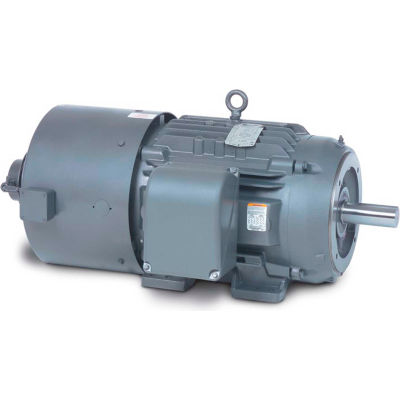

Baldor-Reliance Motor IDM3581T, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TEBC, F1

Baldor-Reliance Motor IDM3581T, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TEBC, F1

Item #: WBB389881

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,531.00 up to 18% OFF

Price: $1,260.00

$210.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,260.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143TC,0524M,TEBC,F1

Features:
  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEBC
  • FRAME143TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT64
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.142
  • SLIP-HERTZ1.2
  • is_motorYes
  • FL EFFICIENCY87.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER05E535X014G1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDM3581T
  • DOE-CODE--
  • FL AMPS3/1.5
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT2/1
  • MAXIMUM-RPM6000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES19.15
  • POLES4
  • INSULATION CLASSH
