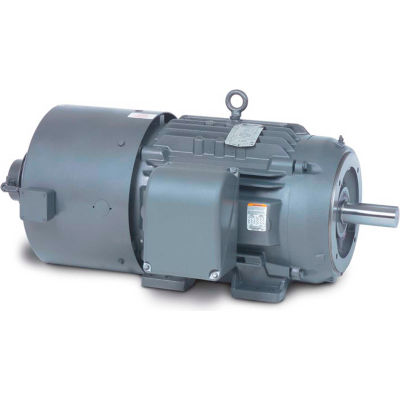

Baldor-Reliance Motor IDM3764T, 3HP, 1160RPM, 3PH, 60HZ, 213TC, 0730M, TEBC, F1

Baldor-Reliance Motor IDM3764T, 3HP, 1160RPM, 3PH, 60HZ, 213TC, 0730M, TEBC, F1

Item #: WBB389040

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,717.00 up to 18% OFF

Price: $2,235.00

$372.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,235.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1160RPM,3PH,60HZ,213TC,0730M,TEBC,F1

Features:
  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEBC
  • FRAME215TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1165
  • RPM1165
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6206
  • WEIGHT172
  • RPM RANGE1101-1200
  • ROTOR-INERTIA0.92
  • SLIP-HERTZ1.7
  • is_motorYes
  • FL EFFICIENCY90.2
  • SERIAL-NUMBER--
  • SPEC. NUMBER07J137X822G1
  • BLOWER-PHASE3
  • BLOWER-AMPS0.25
  • BLOWER-HERTZ60
  • BEARING-DRIVE-END6307
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDM3764T
  • DOE-CODE--
  • FL AMPS9/4.5
  • BLOWER-VOLTS460
  • MAGNETIZING-CURRENT4.6/2.3
  • MAXIMUM-RPM2300
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES29.14
  • POLES6
  • INSULATION CLASSH
