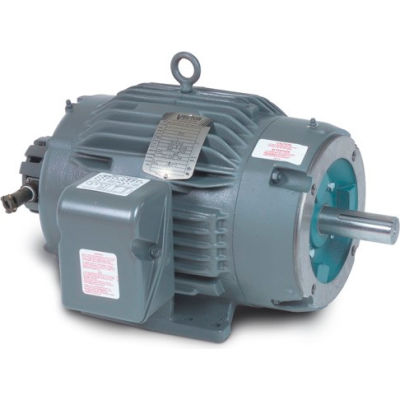

Baldor-Reliance Motor ZDM2333T-5, 15HP, 1765RPM, 3PH, 60HZ, 256TC, 0936M, TEBC, F

Baldor-Reliance Motor ZDM2333T-5, 15HP, 1765RPM, 3PH, 60HZ, 256TC, 0936M, TEBC, F

Item #: WBB392011

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,657.00 up to 18% OFF

Price: $3,830.00

$638.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,830.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 15HP,1765RPM,3PH,60HZ,256TC,0936M,TEBC,F

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Product Specifications

  • HORSEPOWER15
  • ENCLOSURETEBC
  • FRAME256TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6208
  • WEIGHT310
  • RPM RANGE1701-1800
  • ROTOR-INERTIA1.57
  • SLIP-HERTZ1.12
  • is_motorYes
  • FL EFFICIENCY92.4
  • SERIAL-NUMBER--
  • SPEC. NUMBER09F280X820Z1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6309
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERZDM2333T-5
  • DOE-CODE--
  • FL AMPS14.8
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT6.6
  • MAXIMUM-RPM5000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES34.15
  • POLES4
  • INSULATION CLASSH
