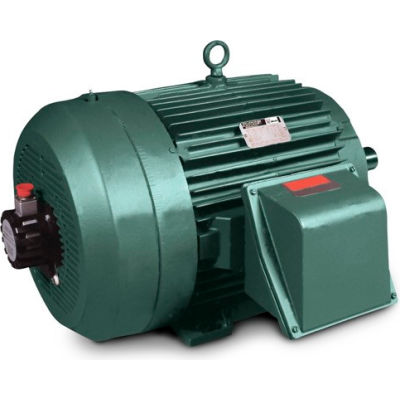

Baldor-Reliance Motor ZDVSCP3774T, 10HP, 1800RPM, 3PH, 60HZ, L215TC, TEFC, FOOT

Baldor-Reliance Motor ZDVSCP3774T, 10HP, 1800RPM, 3PH, 60HZ, L215TC, TEFC, FOOT

Item #: WBB391863

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,733.00 up to 18% OFF

Price: $3,893.00

$648.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,893.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1800RPM,3PH,60HZ,L215TC,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME215TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT216
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA1.08
  • BRG-ODE-AFBMA30BC02J30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP21G1188
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2650
  • BALDOR CATALOG NUMBERZDVSCP3774T
  • BRG-DE-AFBMA35BC02J30X
  • CONSTANT-TORQ-HERTZ1000 1
  • MOTOR-BASE-AMPS24.8/12.4
  • MOTOR-BASE-HP10
  • TYPEP
  • MAGNETIZING-CURRENT9.2/4.6
  • MAXIMUM-RPM5400
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS23.6/11.8
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES20.12
  • MOTOR-BASE-RPM1765
  • POLES4
  • RELIANCE NUMBERE02623A A 001
  • MOTOR-MAX-HP10
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
