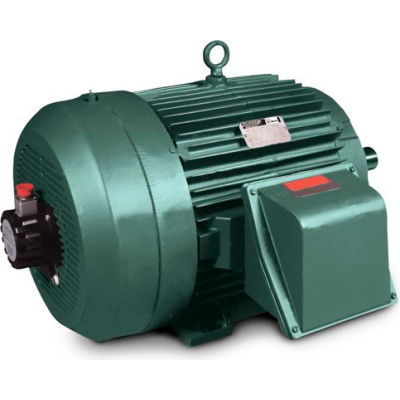

Baldor-Reliance Motor ZDVSCP4110T, 40HP, 1800RPM, 3PH, 60HZ, 324T, TEFC, FOOT

Baldor-Reliance Motor ZDVSCP4110T, 40HP, 1800RPM, 3PH, 60HZ, 324T, TEFC, FOOT

Item #: WBB391864

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$8,859.00 up to 18% OFF

Price: $7,285.00

$1,214.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,285.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 40HP,1800RPM,3PH,60HZ,324T,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER40
  • ENCLOSURETEFC
  • FRAME324T
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1775
  • RPM1775
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT737
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA8.18
  • BRG-ODE-AFBMA55BC03J30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP32G3223
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2670
  • BALDOR CATALOG NUMBERZDVSCP4110T
  • BRG-DE-AFBMA55BC03J30X
  • CONSTANT-TORQ-HERTZ1000 1
  • MOTOR-BASE-AMPS99.6/49.8
  • MOTOR-BASE-HP40
  • TYPEP
  • MAGNETIZING-CURRENT41.8/20.9
  • MAXIMUM-RPM5400
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEStandard
  • MOTOR-MAX-AMPS94.8/47.4
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES30.44
  • MOTOR-BASE-RPM1780
  • POLES4
  • RELIANCE NUMBERW00981A A 003
  • MOTOR-MAX-HP40
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
