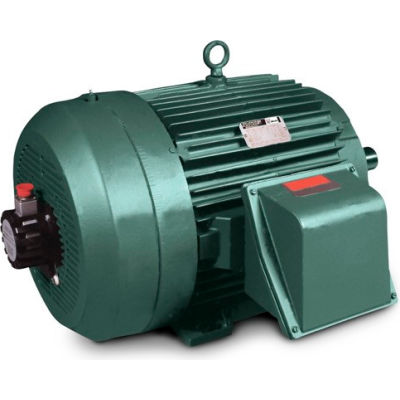

Baldor-Reliance Motor ZDVSNM2333T, 15HP, 1800RPM, 3PH, 60HZ, 256TC, TENV, FOOT

Baldor-Reliance Motor ZDVSNM2333T, 15HP, 1800RPM, 3PH, 60HZ, 256TC, TENV, FOOT

Item #: WBB391960

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,351.00 up to 18% OFF

Price: $4,401.00

$733.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,401.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 15HP,1800RPM,3PH,60HZ,256TC,TENV,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER15
  • ENCLOSURETENV
  • FRAME256TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT378
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA2.16
  • BRG-ODE-AFBMA45BC03J30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP25G1179
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2655
  • BALDOR CATALOG NUMBERZDVSNM2333T
  • BRG-DE-AFBMA45BC03J30X
  • CONSTANT-TORQ-HERTZ1000 1
  • MOTOR-BASE-AMPS37.4/18.7
  • MOTOR-BASE-HP15
  • TYPEP
  • MAGNETIZING-CURRENT15.2/7.6
  • MAXIMUM-RPM5400
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS34.8/17.4
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES23.78
  • MOTOR-BASE-RPM1775
  • POLES4
  • RELIANCE NUMBERE09317AMFB020
  • MOTOR-MAX-HP15
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
