Baldor-Reliance Motor CEWDM3714T-5, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3752M, TEFC, F

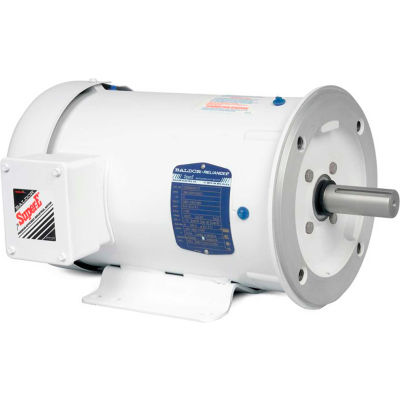

Actual product may differ from image shown

Baldor-Reliance Motor CEWDM3714T-5, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3752M, TEFC, F

Item #: WBB388744

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,319.00 up to 20% OFF

Price: $1,852.00

$308.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,852.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME215TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1770
  • RPM1770
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT162
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERCEWDM3714T-5
  • FL AMPS9.6
  • MANUFACTURER PART #CEWDM3714T-5
  • BEARING-OPP-DRIVE-END6206
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES21.27
  • POLES4
