Baldor-Reliance Motor VEFWDM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 3524M, TEFC, F1

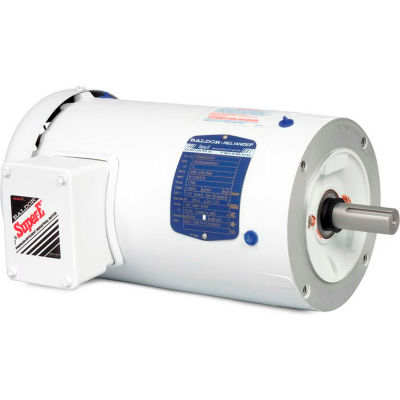

Actual product may differ from image shown

Baldor-Reliance Motor VEFWDM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143TC, 3524M, TEFC, F1

Item #: WBB391184

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$943.00 up to 20% OFF

Price: $754.00

$125.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $754.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143TC,3524M,TEFC,F1

Features:
  • Moisture sealant on bolt heads, between frame and endplates
  • Neoprene gaskets
  • Double sealed bearings
  • Forsheda® running contact v-ring slinger
  • Stainless steel shaft
  • Electrostatically applied epoxy finish
  • Class F insulation
  • Tropicalized
Typical Applications:
Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME143TC
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT39
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERVEFWDM3546T
  • FL AMPS3.1-3/1.5
  • MANUFACTURER PART #VEFWDM3546T
  • BEARING-OPP-DRIVE-END6203
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES13.3
  • POLES4
