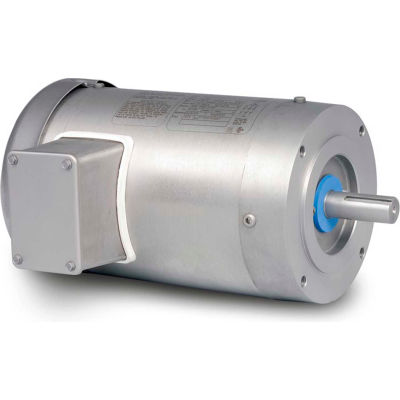

Baldor-Reliance Motor VSSFWDM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor VSSFWDM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1

Item #: WBB391889

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,259.00 up to 20% OFF

Price: $1,006.00

$167.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,006.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1750RPM,3PH,60HZ,56C,3524M,TEFC,F1

Features:
  • All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base
  • Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire
  • Four condensate drains in each endplate
  • Enplate rabbets sealed and conduit box gasketed
  • Lip seals
  • Especially effective in highly corrosive environments where paint or other finishes do not hold up.
Typical Applications:
Food processing, packaging, outdoor and highly corrosive environments.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1740
  • RPM1740
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT49
  • RPM RANGE1701-1800
  • BALDOR CATALOG NUMBERVSSFWDM3542
  • FL AMPS2.4-2.2/1.1
  • MANUFACTURER PART #VSSFWDM3542
  • BEARING-OPP-DRIVE-END6203
  • DRIVE END FLANGEC-Face
  • is_motorYes
  • C-DIMENSION INCHES13.34
  • POLES4
