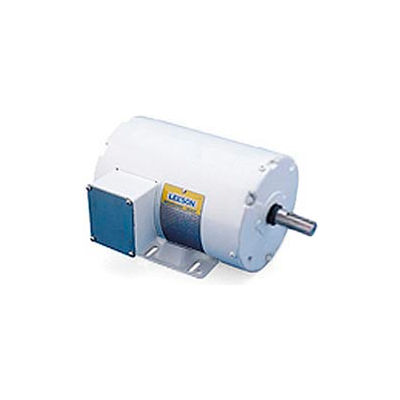

Leeson Motors Motor Washdown Motor-1.5/1HP, 208-230/460V, 1740/1440RPM, TEFC, RIGID,  84 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1.5/1HP, 208-230/460V, 1740/1440RPM, TEFC, RIGID, 84 Eff.

Item #: WBB228125

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$983.00 up to 51% OFF

Price: $501.00

$83.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $501.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $501.00 ea.
  • Buy 3+ $485.95 ea.

Quantity

Customers Also Viewed

Washguard White Epoxy Coated Motor, 3-Phase: 1.5/1HP, 1740/1440 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, RIGID, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 4.5-4.4/2.2&3.8/1.9, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 84, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Diameter: 7/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1.0 SF

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEFC
  • FRAME145
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1740
  • RPM1740
  • PHASE3
  • VOLTAGE208-230/460
  • NAMEPLATE AMPS4.5-4.4/2.2&3.8/1.9
  • COMPATIBLE WITH/REPLACESBaldor EWDM3554T, Marathon N321
  • HERTZ60/50
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEEPAct
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT54
  • ULY
  • CSAY
  • LEESON MODEL NO.C145T17WB12CC
  • UPC69172008576
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY84
  • CATALOG NUMBER121869.00
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS4.5-4.4/2.2
  • MANUFACTURER PART #121869.00
