Leeson Motors Motor Washdown Motor-1/3HP, 115/208-230V, 1725RPM, TENV, RIGID C, 1.15 SF, 72 Eff.

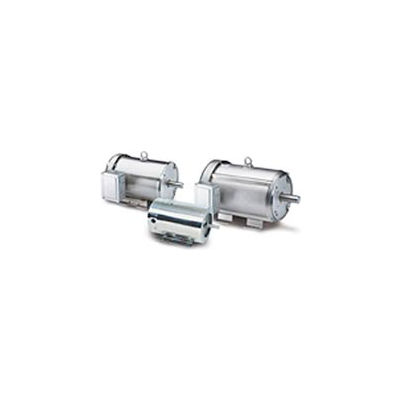

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/3HP, 115/208-230V, 1725RPM, TENV, RIGID C, 1.15 SF, 72 Eff.

Item #: WBB228149

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,574.00 up to 52% OFF

Price: $778.00

$129.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $778.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $778.00 ea.
  • Buy 3+ $754.00 ea.

Quantity

Customers Also Viewed

Premium Washguard All-Stainless Washdown Motors, Single-Phase: 1/3HP, 1725 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56H Frame, RIGID C, 115/208-230V, 1PH, 60HZ, Name Plate Amps 5.4/2.7, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 72, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8", Shaft Diameter: 5/8".

Maximum service in critically clean or corrosive environments

  • All exterior components of stainless steel
  • Endshields o-ring sealed to frame
  • IEEE 841 severe-duty features standard
  • Meets demanding pharmaceutical requirements, also excellent for chemical-processing applications
  • Meets IP56 enclosure protection
  • Incorporates all WASHGUARD mechanical and electrical features
  • IRIS™ insulation system
  • BISSC certified for baking industry


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETENV
  • FRAME56HC
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS5.4/2.7
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONStainless Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT35
  • ULN
  • CSAY
  • LEESON MODEL NO.NZ6C17VK1BB
  • UPC69172030740
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY72
  • CATALOG NUMBER116343.00
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS5.4/2.9-2.7
  • MANUFACTURER PART #116343.00
