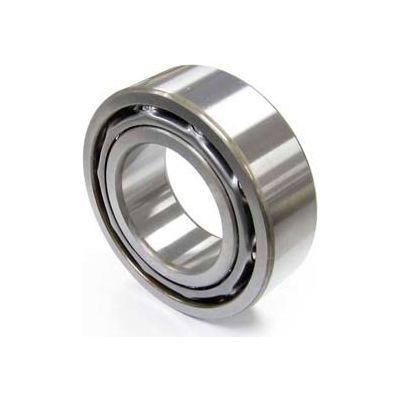

NACHI 5310, Double Row Angular Contact Bearing, Open, 50MM Bore x 110MM OD x 44.4MM W
Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.
Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS50
- OUTER DIAMETER MILLIMETERS110
- WIDTH MILLIMETERS44.4
- DYNAMIC LOAD RATING (N)90000
- STATIC LOAD RATING (N)68000
- SERIES5300
- TOLERANCEISO Class 0
- Max Speed (rpm) / Grease4,500
- MANUFACTURERS PART NUMBER5310
- CONTACT ANGLE20°
- RADIAL CLEARANCENormal
