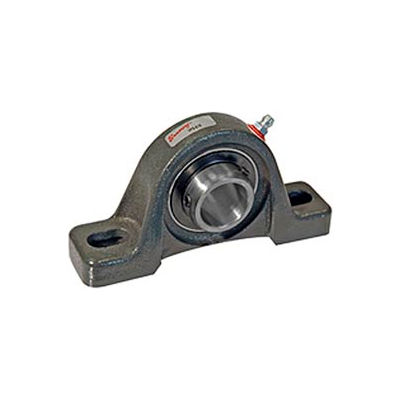

Pillow Block Ball Bearing
Normal duty, cast iron housing material, 1-1/8" bore diameter and set screw locking type. Centerline of shaft to mounting surface is 15/16", mounting bolt size is 1/2" and mounting holes center to center is 15/16". Dimensions: 6-3/16 L" x 1-1/2 W" x 3-9/32 H", 2.5 lbs. Temperature Range: -20° to 200°F.
Normal duty, cast iron housing material, 1-1/8" bore diameter and set screw locking type. Centerline of shaft to mounting surface is 15/16", mounting bolt size is 1/2" and mounting holes center to center is 15/16". Dimensions: 6-3/16 L" x 1-1/2 W" x 3-9/32 H", 2.5 lbs. Temperature Range: -20° to 200°F.
Product Specifications
- BRANDBrowning
- BORE DIAMETER INCHES1-1/8
- OUTSIDE DIAMETER1-1/8"
- LOCKING TYPESet Screw
- DUTYNormal Duty
- HOUSING MATERIALCast Iron
- INSERTBall Bearings
- LENGTH INCHES6-3/16
- MOUNTING SURFACE TO CENTERLINE OF SHAFT INCHES1-11/16
- HEIGHT INCHES3-9/32
- DESCRIPTIONPillow Block
- MANUFACTURERS PART NUMBERVPS-218
- MOUNTING HOLE CENTERS INCHES15/16
- DEPTH INCHES1-1/2
- TEMPERATURE RANGE °F-20 to 200
- WEIGHT LBS2.5
Customer Review
Product Q & A
There are no questions for this product.
Save $62.45 with this comparable product
Tritan, UCP206-18, Pillow Block Bearing, Set Screw Locking, Bore 28.575 mm
Item #: B1873225
Not Yet Rated
Usually ships in 3 to 6 days
$16.50
compare items
Mounted Ball Bearing, Pillow Block, 1-1/8" Bore Browning VPS-218
$78.95
