Worldwide HdRF133-20/1-R-56C Cast Iron Right Angle Worm Gear Reducer 20:1 Ratio 56C Frame
See all 65 items in product family

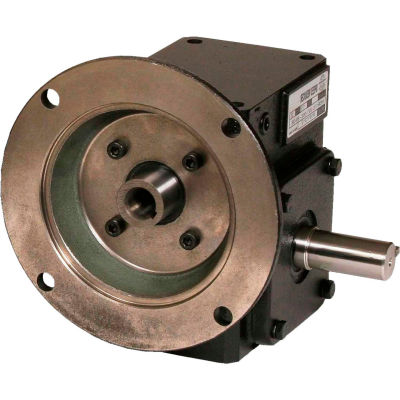

Worldwide HdRF133-20/1-R-56C Cast Iron Right Angle Worm Gear Reducer 20:1 Ratio 56C Frame

Item #: WBB1856442

Sold By: globalindustrial.com

Usually ships in 1 to 4 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $224.00 Save up to 31%
Price: $ 153.95
Product Information
Customer Review
Product Q&A
Worldwide HdRF133-20/1-R-56C Cast Iron Right Angle Worm Gear Reducer 20:1 Ratio 56C Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

    • OUTPUT SPEED (RPM)88
    • OVERHUNG LOAD LBS.300
    • EFFICIENCY78
    • NEMA FRAME56C
    • BRANDWorldWide Electric Corporation
    • CROSS REFERENCEBoston F713; Grove BMQ213
    • MANUFACTURERS PART NUMBERHdRF133-20/1-R-56C
    • BACKLASH (FT.) (ANGULAR MINUTES)27
    • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
    • OUTPUT SHAFT THRUST LOAD (LBS.)300
    • MAX INPUT HP0.5
    • MAX TORQUE (IN-LBS.)276
    • WCD CENTER INCHES1.33
    • GEAR RATIO20:1
