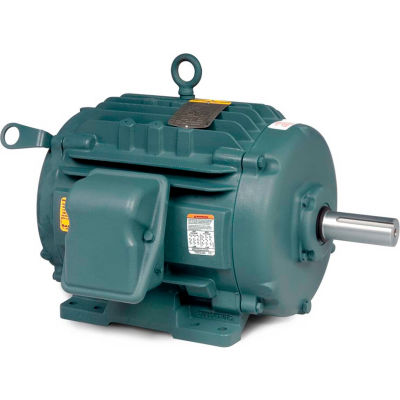

Baldor-Reliance Motor CTM3770T, 7.5HP, 1765RPM, 3PH, 60HZ, 213T, 0729M, TEAO, F

Baldor-Reliance Motor CTM3770T, 7.5HP, 1765RPM, 3PH, 60HZ, 213T, 0729M, TEAO, F

Item #: WBB388518

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,285.00 up to 20% OFF

Price: $1,027.00

$171.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,027.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 7.5HP,1765RPM,3PH,60HZ,213T,0729M,TEAO,F

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM3770T
  • HORSEPOWER7 1/2
  • MOTOR RPM 60Hz1765
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME213T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1765
  • MOUNTINGRigid
  • FULL LOAD AMPS22.3/20.6/10.3
  • SHAFT DIAMETER1.375
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6309
  • OPPOSITE END BEARING SIZE6206
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES28.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH19.54
  • is_motorYes
  • LENGTH INCHES28.5
  • WIDTH INCHES18
  • HEIGHT INCHES18
  • WEIGHT LBS164
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.375
  • SHAFT LENGTH INCHES1.375
  • FL EFFICIENCY89.5
  • DESIGN CODEA
  • OPPOSITE END BEARING6206
  • FL AMPS22.3-20.6/10.3
  • POLES4
  • FRAME SIZE213T
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
