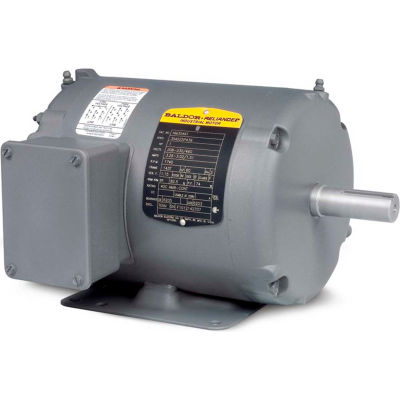

Baldor-Reliance Motor AOM3454, .25HP, 1725RPM, 3PH, 60HZ, 48, 3410M, TEAO, F1

Baldor-Reliance Motor AOM3454, .25HP, 1725RPM, 3PH, 60HZ, 48, 3410M, TEAO, F1

Item #: WBB388750

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$297.00 up to 20% OFF

Price: $237.95

Save $11.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .25HP,1725RPM,3PH,60HZ,48,3410M,TEAO,F1

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERAOM3454
  • HORSEPOWER1/4
  • MOTOR RPM 60Hz1725
  • VOLTAGE230/460
  • PHASE3
  • FRAME48
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1725
  • MOUNTINGRigid
  • FULL LOAD AMPS1.7/1.3/0.7
  • SHAFT DIAMETER0.5
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6203
  • INSULATION CLASSB
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES14
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH9.63
  • is_motorYes
  • LENGTH INCHES14
  • WIDTH INCHES11.125
  • HEIGHT INCHES11.125
  • WEIGHT LBS18
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES0.5
  • SHAFT LENGTH INCHES0.5
  • FL EFFICIENCY64
  • DESIGN CODEB
  • OPPOSITE END BEARING6203
  • FL AMPS1.3/.65
  • POLES4
  • FRAME SIZE48
  • DRIVE END FLANGEStandard
  • ENCLOSURETEAO
