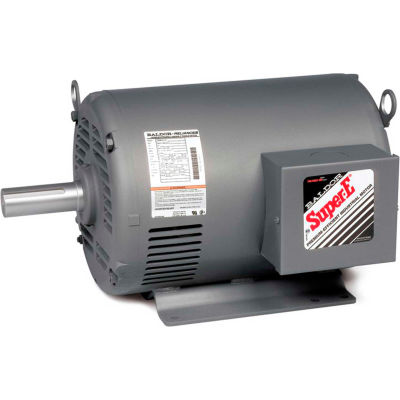

Baldor-Reliance Motor EHFM2543T, 50HP, 1775RPM, 3PH, 60HZ, 326T, 4256M, OPSB, F2

Baldor-Reliance Motor EHFM2543T, 50HP, 1775RPM, 3PH, 60HZ, 326T, 4256M, OPSB, F2

Item #: WBB390495

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,893.00 up to 29% OFF

Price: $3,459.00

$576.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,459.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 50HP,1775RPM,3PH,60HZ,326T,4256M,OPSB,F2

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBEREHFM2543T
  • HORSEPOWER50
  • MOTOR RPM 60Hz1775
  • VOLTAGE230/460
  • PHASE3
  • FRAME326T
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1775
  • MOUNTINGRigid
  • FULL LOAD AMPS57.0/121.0/114.0
  • SHAFT DIAMETER2.125
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6311
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES31
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH27.69
  • is_motorYes
  • LENGTH INCHES31
  • WIDTH INCHES23.75
  • HEIGHT INCHES23.75
  • WEIGHT LBS466
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES2.125
  • FL EFFICIENCY94.5
  • DESIGN CODEB
  • OPPOSITE END BEARING6311
  • FL AMPS114/57
  • POLES4
  • FRAME SIZE326T
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPSB
