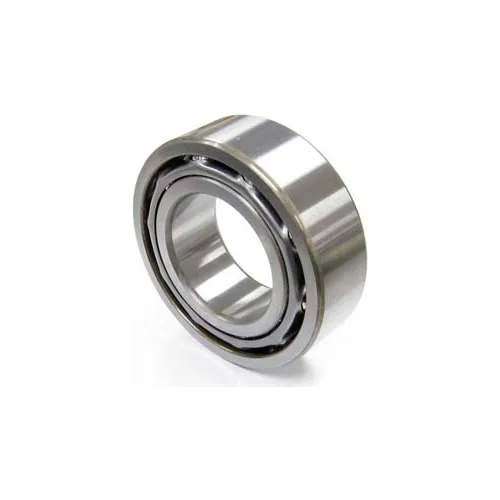

NACHI, 5213-2NS, Double Row Angular Contact Bearing, Double Sealed, 65MM Bore x 120MM OD x 38.1MM W

NACHI 5205-2NS, Double Row Angular Contact Bearing, Double Sealed, 25MM Bore x 52MM OD x 20.6MM W Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

NACHI 5307-2NS, Double Row Angular Contact Bearing, Double Sealed, 35MM Bore x 80MM OD x 34.9MM W Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

Features NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items) Operating temperature range is -30° to 80°C (-35° to 175°F)

NACHI 5201-2NS, Double Row Angular Contact Bearing, Double Sealed, 12MM Bore x 32MM OD x 15.9MM W Double Row Angular Contact Ball Bearings are functionally same as two single row angular contact ball bearings mounted back-to-back except they have only one inner ring and one outer ring. These bearings take heavy radial loads, and axial loads equally in either direction.

SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
