Price: $1,549.00
Customers Also Viewed

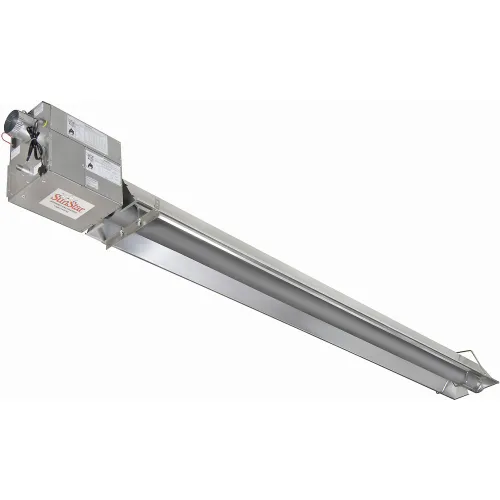

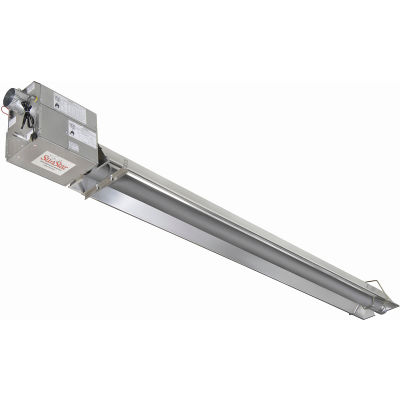

Tough Guy Straight Tube heaters are ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40' of ducting in fresh air or 40' sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. The minimum mounting heights are shown for human comfort and uniform energy distribution for complete building applications. Mount heaters as high as possible. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA.
To help pick out the heater that's right for you, click here to view the Heat Loss Estimating Chart.
- BRAND SunStar
- LENGTH FEET 52
- WIDTH INCHES 13
- HEIGHT INCHES 6-1/4
- DUCT SIZE INCHES 4
- MIN. CLEARANCE COMBUSTIBLE AT 45 DEGREE ANGLE INCH Front 84, Rear 24, Ceiling 6, Below 106, End 48
- MIN. CLEARANCE COMBUSTIBLES AT HORIZONTAL INCH Side 84, Ceiling 6, Below 106, End 48
- WEIGHT LBS 190.4
- CONSTRUCTION Cast Iron Burner / Aluminum Reflectors
- MANUFACTURER PART# SPS150-50-TG-N5
- TUBE CONSTRUCTION Heat Treated Aluminized Steel
- BTU HIGH 150000
- GAS INLET PRESSURE MAX. WATER COLUMN INCHES 14
- GAS INLET PRESSURE MIN. WATER COLUMN INCHES 5
- SHAPE Straight
- FUEL TYPE Natural Gas
- IGNITION TYPE Direct Spark
- DESCRIPTION Tough Guy
- TYPE Positive Pressure
- LIMITED WARRANTY YEARS 1
- TUBE LENGTH FEET 50
- BURNER PRESSURE W.C. INCHES 3-1/2
- MIN. MOUNTING HEIGHT FEET AT 45 DEGREE ANGLE 14
- MIN. MOUNTING HEIGHT FEET AT HORIZONTAL 15
