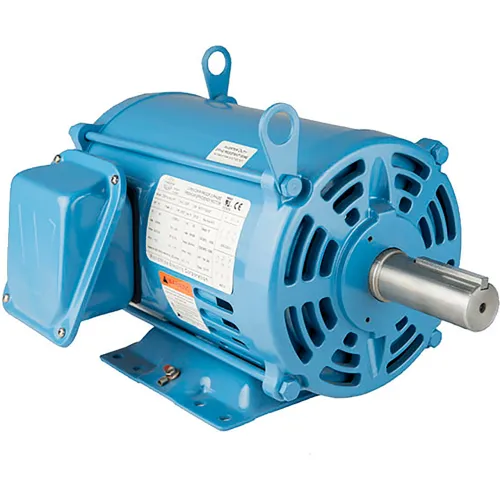

WorldWide Electric Corporation General Purpose Motor, ODP w/Rigid Base, 404TS Frame, 100HP, 1800 RPM

WorldWide Electric's Open Drip Proof (ODP) motors are designed and engineered for use in HVAC and refrigeration equipment, air compressors, and general purpose installations where cooler-running, non-enclosed motors are ideal. WorldWide Electric Premium Efficiency ODP motors are available in horsepower ratings from 1/2 to 125 and feature IP23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs.

Features:

• 1/2-125 HP
• 3600, 1800, 1200 RPM
• 208-230/460 Volt, 60 Hz
• 190/380 Volt, 50 Hz
• Open Drip Proof (ODP) Enclosure
• Rolled Steel Frame (1/2-50 HP) – Cast Iron Frame (60-100 HP)
• IP23 Protection
• 1.15 SF (1.0 SF for 50 Hz Applications)
• Class F Insulation
• Rigid Base (56C-Face with Removable Base)
• Premium Efficiency
• Class B Temperature Rise
• Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
• Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31
• Pre-Drilled and Tapped Drive Endbells on 143T Frame and Up to Accept Inpro® Current Diverter Rings; No Machining Required, Simple and Easy Installation
• Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System
• Double Drilled Feet to Accommodate Mounting Flexibility (143T-404T)
• 254T and larger are suitable for F1 to F2 conversion
