This P70 Series of controls employs a set of switch contacts that are opened and closed by the movement of pressure actuated bellows. The load-carrying contacts provide direct control of AC motors within the control rating. Note the electrical rating chart for specific models. These controls are available with either close high-open low, open high-close low, or SPDT contact action.
Share
Spec Sheet

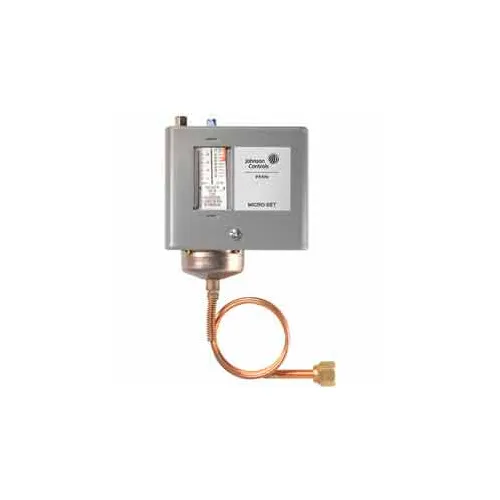

P70CA-61 Single Pole Low Pressure Control For Ammonia
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$179.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Product Details
| Pressure Connector | 1/4 in. Female NPT |
| Switch Action | Open High - Close Low |
| Brand | Johnson Controls |
Warranty
| Warranty | 1 yr |
