✓13-gauge steel uprights
✓32900 lb. total rated capacity
✓ Teardrop connection style
The Global Industrial™ Pallet Rack Upright Frame is an upstanding solution that supports pallet rack beams. This welded upright frame is made with 13 gauge steel and a long lasting baked-on enamel finish. When selecting an upright beam, it is recommended to determine the total weight of all pallets for each pair of upright frames. (Add the height of all pallet loads, beam height, allowing 4" to 8" clearance between the top of the load and the bottom of the beam above. The top beam should be a minimum of 6" less than the maximum height of your forklift reach. Frame depth is determined by the length of the pallet. The pallet should overhang the frame by 3" front and back. Interchangeable with Interlake, Wireway/Husky, Unarco, Steel King, USP, Speed Rack and Invincible.)
32900 lb rated capacity, higher than other pallet racking in the market. Capacity based on 36" beam shelf spacing. If seismic conditions apply, verification of capacities must be confirmed with a seismic engineer. Global Industrial® is not responsible for engineering, installation and/or application of this material. Global Industrial® is not responsible for permits. It is the full responsibility of the customer to check the contents and quantities. The (lbs) capacity rating(s) provided are for reference only. These ratings apply to static (non-seismic) conditions only.
Global Industrial
Model # :WB290616

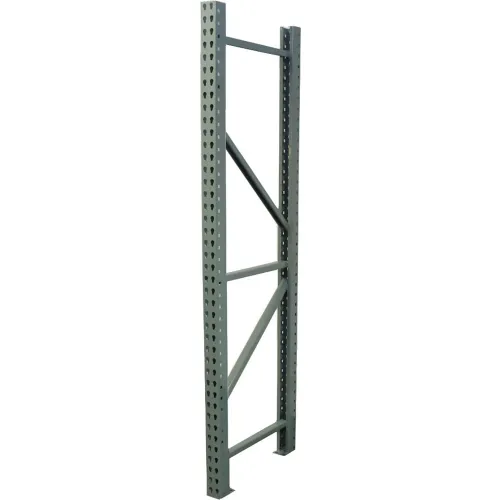

Global Industrial™ Pallet Rack Upright Frame, 24"D x 144"H
|
Questions & Answers (0)
Product Description
PRICE
$269.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 3 in |
| Depth | 24 in |
| Height | 144 in |
| Weight Capacity | 32900 lbs |
| Weight | 40.4 lbs |
| Connection | Teardrop |
| Column Size | 3 x 3 in |
Product Details
| Assembly Required | No |
| Color | Green |
| Material | Steel |
| Construction Type | Welded Frame |
| Package Quantity | 1 |
| Manufacturers Part Number | 290616 |
| Brand | Global Industrial |
Warranty
| Warranty | 1 yr |
