✓ 32,900 lb. weight capacity
✓ 13-gauge steel with baked enamel finish
✓ Compatible with teardrop-style uprights

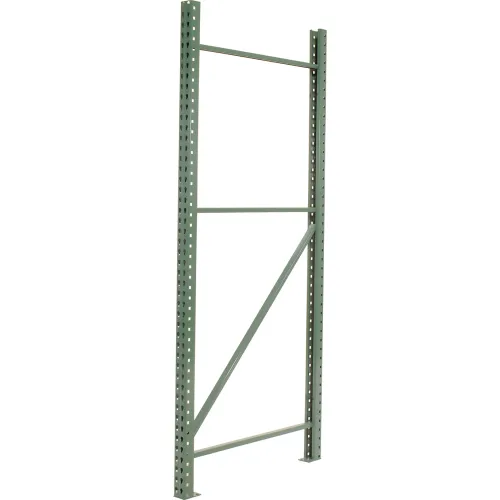

This 42"D x 192"H Global Industrial™ Pallet Rack Upright Frame is made of strong 1-piece box-formed 13 ga steel with welded bracing and a corrosion-resistant baked enamel finish. It designed to accept teardrop-shaped shelf connectors that make setup and adjustments quick and easy without tools. Limited 1-Year Warranty.
Welded base plates with pre-drilled holes for floor-mounting
Horizontal & diagonal welded bracing improves strength & rigidity
Capacity based on 36" beam shelf spacing
Compatible with Interlake, Wireway/Husky, Unarco, Steel King, USP, Speed Rack and Invincible
To select an upright beam, determine the total weight of all pallets for each pair of upright frames. Add the height of all pallet loads, beam height, allowing 4 - 8" clearance between the top of the load, and the bottom of the beam above. The top beam should be a minimum of 6" less than the maximum height of your forklift reach. Frame depth is determined by the length of the pallet. The pallet should overhang the frame by 3" front and back.
Disclaimer: If seismic conditions apply, verification of capacities must be confirmed with a seismic engineer. Global is not responsible for engineering, installation and/or application of this material. Global is not responsible for permits. It is the full responsibility of the customer to check the contents and quantities. The (lbs) capacity rating (s) provided are for reference only. These ratings apply to static (non- seismic) conditions only.
