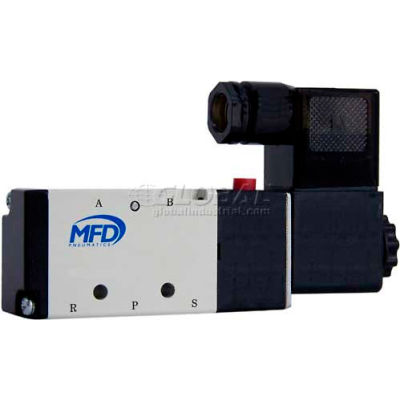

Bimba-Mead Pilot Solenoid Valve M4V210-08-24VAC, 5 Port, 2 Pos, Sgl, 1/4" NPT, 1/8" NPT Exh, 24VAC

Bimba-Mead Pilot Solenoid Valve M4V210-08-24VAC, 5 Port, 2 Pos, Sgl, 1/4" NPT, 1/8" NPT Exh, 24VAC

Item #: WBB572005

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $62.95

Save $3.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Pilot Solenoid Valve M4V210-08-24VAC, 5 Port, 2 Pos, Sgl, 1/4" NPT, 1/8" NPT Exh, 24VAC

M4V210-08 piloted single solenoid valves are 4-way, 1/4 in NPT inlet port, 1/8 in NPT exhaust port, spool style valves. They are stackable and provide a 2-position, normally closed, spring return operation. The M4V210-08 series valves can be used in individual valve applications or multiple valves can be assembled together on a manifold to share supply air which simplifies the piping. They are compatible with the M200M series manifolds. The DIN connector includes an LED indicator. Valves equipped with a turning manual override.

  • LENGTH INCHES 4-39/64
  • WIDTH INCHES 7/8
  • HEIGHT INCHES 2-5/8
  • BRAND Bimba-Mead
  • MANUFACTURERS PART NUMBER M4V210-08-24VAC
  • TYPE 5 Port 2 Position
  • TEMPERATURE RANGE 23∼140°F
  • PRESSURE 22 to 120 PSI
  • LUBRICATION Not Required
  • ACTUATION Internally Piloted
  • MEDIA Air
  • INSULATION Class F
  • FLOW Cv = 0.89
  • PORT SIZE 1/4" NPT Inlet Port, 1/8" NPT Exhaust Port
  • POWER CONSUMPTION 3.5 VA
  • PROTECTION IP65 (DIN 40050)
  • POWER CONNECTION DIN / LED Connector
  • VOLTAGE RANGE ±10%
