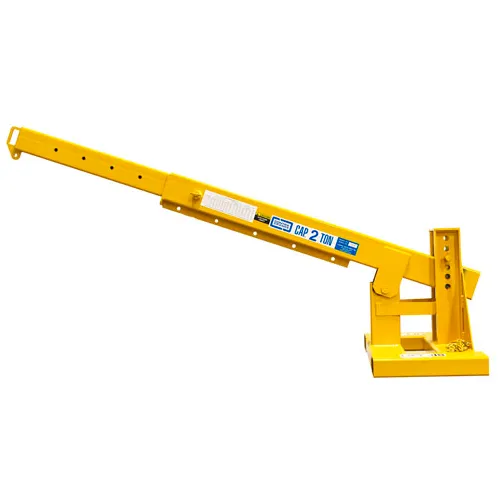

Contrx Pivot Boom Forklift Jib-Lift Crane, 36" On-Center Fork Pockets, 6000 Lbs. Capacity

Perfect for when job includes high and hard to reach objects. Quickly and easily convert your forklift into a mobile pivoting boom lift. Telescoping boom adjusts from 84" to 147" horizontally in 7-1/2" increments and adjusts vertically five elevations up to 37 degrees (99-1/2") above horizontal. Features 3' restraining chain with grab hook, swivel hooks with safety latches, ten alternate hook positions and a boom locking T-pin. Maximum Load on a Single Hook: At 36" Hook Position = 6000 lbs. At 60" Hook Position = 4500 lbs. At 84" Hook Position = 3500 lbs. At 99" Hook Position = 2900 lbs. ...

Ergonomically designed Contrx workstation jib cranes are widely used for repetitive motion material handling applications requiring 360 degree boom rotation. Low-friction enclosed track protects running surface from dirt, for minimal resistance. Includes trolley with lifetime lubricated and sealed wheel bearings that accepts most hoists, balancers and manipulators. Made in USA.

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks. Features: Unique design converts fork trucks into overhead lifting cranes Fork pockets with safety strap attach & secure boom to fork truck Robotically welded construction provides precision and durability Operations & capacity sticker provide user instructions and safety

Converts your forklift instantly to a jib boom crane. Simply slip forks of your counter-balanced lift truck into fork pockets of jib boom and attach 36"L safety chain to truck mast. Maximum Load on a Single Hook: At 36" Hook Position = 6000 lbs. At 144" Hook Position = 1800 lbs. - 151-1/4" Fully Extended; 86-1/4" Fully Retracted - Safety chain welded to boom has grab hook for anchoring jib boom to truck - Two hoisting hooks (one swivel, one rigid) - Adjustable locking screw secures boom in any position - 4 intermediate supports points under boom on 12" centers add support for long loads - ...

The short boom length of this crane is perfect for use in tight, restricted space areas. Each crane includes integral fork pockets, safety restraint and 2 hoisting hooks (one swivel, one rigid). Heavy duty robotically welded steel construction features a durable chip-resistant enamel finish. Maximum Load on a Single Hook: At Inner Hook = 8000 lbs. At Outer Hook = 4000 lbs. ** "S" Dimension is the dimension from the center to center of the fork tine sleeves. NOTE: OSHA requires contacting the manufacturer of your truck for written approval for the use of any fork truck attachments.
