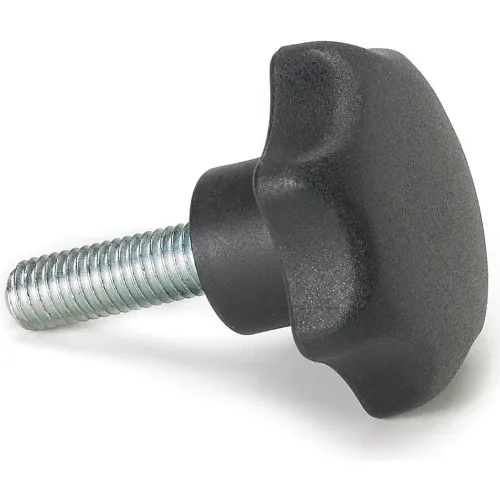

Plastic Hand Knob w/SS Screw - 1/4-20 Thread, 9/16" Thread Length, 1" Knob Dia. - 2425AC015SS

Indexing Plunger Standard Lock-Out & Nut Black 19.0x45.0N Pressure M20x1.5 Thread 10x10mm Pin Indexing plungers GN 617.1 with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers with a ...

EN 563 plastic T-handles can be used either as operating handles or for clamping purposes, providing high clamping force. Maximum heat resistance of technopolymer plastic: 265°F (130°C). Blind bore tol. = H9.

The choice of knobs can be made dependent on their function and/or their modern design. Maximum heat resistance of phenolic plastic: 150°C (300°F). For certain minimum quantities, inch size threads, special threads and shaft lengths are available upon request.

This indexing Plunger is used in applications which require surface mounting and the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The series has been expanded with additional plunger pin lengths to widen the application opportunities. Maximum heat resistance of nylon plastic hand knob is 230°F.

A range of low cost indexing plungers which function well in small dimensions. However, their use should be limited to such applications where high precision indexing is not required. Maximum heat resistance of nylon plastic hand knob: 110°C (230°F).
