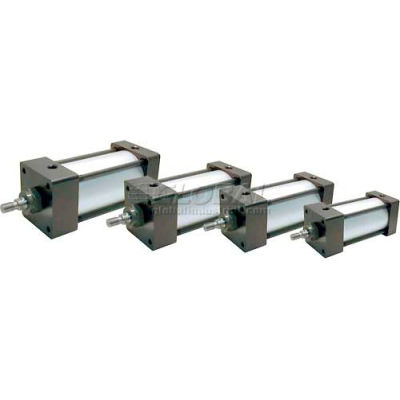

Bimba-Mead NFPA Cylinder HD1-200X2-FB-MP, Heavy-Duty, 2" Bore, 2" Stroke

Bimba-Mead NFPA Cylinder HD1-200X2-FB-MP, Heavy-Duty, 2" Bore, 2" Stroke

Item #: WBB571757

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $399.95

Save $20.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead NFPA Cylinder HD1-200X2-FB-MP, Heavy-Duty, 2" Bore, 2" Stroke

Cylinders for Abusive Conditions Combining NFPA dimensional interchangeability and high quality components, the HD1 Series offers excellent performance and long service life, even in the most severe of conditions. External Bearing Ensures Smooth MotionHD1 cylinders are fitted with a heavy-duty external rod bearing in the rod end head. PTFE-impregnated and hardcoat anodized, this bearing ensures smooth rod motion while maintaining rod rigidity and stability. The entire rod gland and bearing may be quickly removed and replaced without disassembling the cylinder.

Product Specifications

  • MANUFACTURERS PART NUMBERHD1-200X2-FB-MP
  • BRANDBimba-Mead
  • HEIGHT INCHES7-3/8
  • LENGTH INCHES2-1/2
  • BORE INCHES2
  • FILTRATIONNot Essential, But A Standard 40 Micron Filter Placed Upstream Will Prolong Seal
  • MAX. OPERATING OIL PRESSURE1000
  • MOUNTING STANDARDNational Fluid Power Association - NFPA
  • LUBRICATIONFor Maximum Cylinder Life, Non-Detergent Petroleum Based Oil Is Recommended.
  • MAX. OPERATING AIR PRESSURE250
  • RODHigh Tensile Ground And Polished Hard Chrome Plated Steel
  • PISTONSolid High Alloy Aluminum And Fitted With A PTFE Wear Band
  • THRUST MULTIPLIER TO DETERMINE CY3.14
  • THRUST PUSHING FORCE OF CYLINDER314
  • STROKE INCHES2
  • TEMPERATURE RANGE-40 to +250° F
  • TUBESAluminum Hard Anodized To 60 Rc (16 RMS Finish)
  • WIDTH INCHES2-1/2
