PLUG/OUTLETS - Input: NEMA 5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)
ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)
FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more

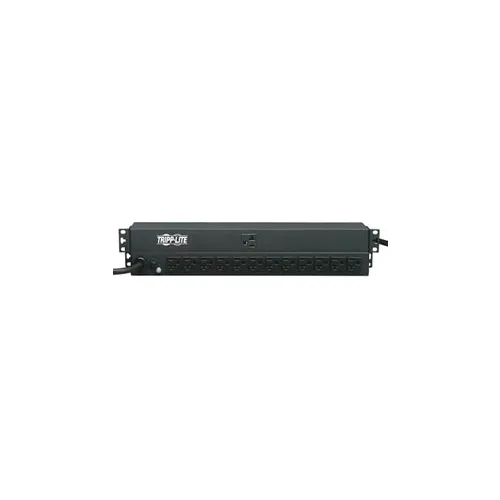

- Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles
- Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats
- Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs
- 15 foot AC cord NEMA5-20P plug connection
- Switch-free design prevents the potential for accidental shutoff of connected loads
- 20 amp electrical capacity with circuit breaker
- 120V AC, 50/60Hz electrical compatibility
