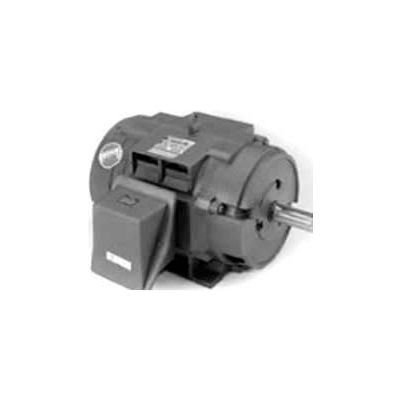

Actual product may differ from image shown
Customers Also Viewed
Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.
- HORSEPOWER 5
- ENCLOSURE DP
- FRAME 182T
- MOUNTING Rigid
- NAMEPLATE RPM 3600
- PHASE 3
- MOTOR RPM 60Hz 3600
- VOLTAGE 208-230/460
- DUTY Continuous
- SERVICE FACTOR 1.15
- THERMAL PROTECTION Thermostats (Normally Closed)
- AMBIENT TEMP C 40
- WEIGHT 93
- UL Recognized Construction
- CSA Y
- RPM RANGE 3001-3600
- ENCLOSURE TYPE Open/Drip Proof
- IP CODE 22
- is_motor Yes
- ORIENTATION Horizontal
- MANUFACTURER PART # U1248
- 50 Hertz SF 1.15
- BRAND Marathon Motors
- 50 HERTZ FL AMPS 14/7
- 50 HERTZ VOLTAGE 190/380
- STARTING TYPE LINE OR INVERTER
- OPPOSITE END BEARING SIZE 6205
- DRIVE END BEARING SIZE 6206
- NEMA DESIGN B
- APPROVAL-CE Y
- ASSEMBLY F1 Only
- KVA-CODE J
- 50 HERTZ RPM 3000
- 50 Hertz kW 3.7
- 50 Hertz HP 5
- FL AMPS 13-12/6
- INSULATION CLASS F
- FL EFFICIENCY 87
- BEARING-OPP-DRIVE-END 6205
- BEARING-DRIVE-END 6206
- 60 HERTZ kW 3.7
- MODEL NUMBER 182TTDW6001
