Serengeti-IR

Model # :WBB2245987

MPN #: 0918R.30LP.S

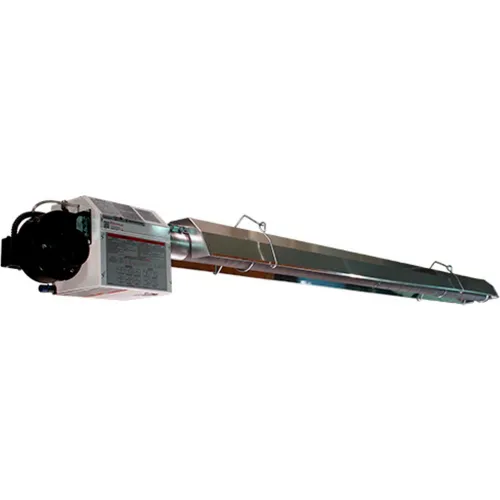

Serengeti-IR™ Propane Gas Infrared Straight Tube Heater, 30' Tube Length, 60000 BTU

Product Description
Serengeti-IR™ Residential Radiant Infrared Tube Heater the original dry tube gas fired system manufactured in US by Combustion Research. 60000 BTU Power vented system with 3.5" OD Emitter tube that runs on Propane Gas Pre Engineered, gas fired, unitary power vented (also known as positive pressure or push through systems) 30 Feet Straight Configuration systems package. Energy savings of 30-50% over Conventional Heating Systems. Each System includes a Powder Coated Aluminized Steel Burner with 3 ft power cord and a 3 prong plug. Also comes standard bright finish aluminum reflectors, tube & reflector hangers and intermediate supports, heat treated aluminized steel radiant tubes, joint sealer, screws, turbulator, stainless steel flexible gas connector with manual gas valve (US Only) and two reflector end caps. For use in residential garages other common uses include commercial and industrial applications, manufacturing plants, warehouses, hangars, loading docks, workshops, fire stations, garages, entire buildings, barns, animal confinement, oil & lube shops, auto dealership, patio's, pole barns, bump shops, service garages, car & truck wash bays, shipping & receiving docks, steel warehousing, greenhouses, swimming pools, spot heating and more. CSA Certified. limited warranty: One year on Ignition Controls & Electrical Components, 10 year on Radiant Tubes – Refer to Owner's Manual for Details. Installation Codes: COMBUSTION RESEARCH CORP. products are to be installed in accordance with local codes, laws and regulations and only by a HVAC contractor qualified in the installation and service of gas fired heating equipment. This product is made in USA.

PRICE
$1,525.00

1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length26-9/16 in
Width13-1/2 in
Height10-1/2 in
Weight102 lbs
Tube Length30 ft
Min Mounting Height10 ft
Clearance to Combustibles Top5 in
Clearance to Combustibles Side24 in
Duct Size4 in
Burner Pressure10 in
Clearance to Combustibles Bottom50 in
Max Mounting Height16 ft
Gas Inlet Pressure Max Water Column14 in

Product Details

Tube MaterialAluminized Steel
Mounting LocationCeiling
Wattage17584 W
MaterialAluminized Steel/Aluminum
Ignition TypeDirect Spark
Phase1
BTU60000 BTU
Manufacturers Part Number0918R.30LP.S
ShapeStraight
BrandSerengeti-IR
TypePositive Pressure Tube
ColorWhite
Amperage1.4 A
Voltage110 V
IncludesNPT Stainless Steel Gas Flex
Power Cord TypePlug-in
Fuel TypePropane

Warranty

Warranty3 Year Burner/10 Year Tube

Compliance & Certifications

CertificationsCSA
