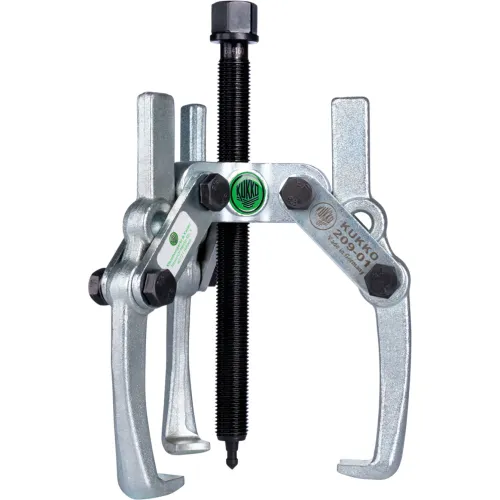

The 3-armed lug puller "Economy" with oscillating and height-adjustable puller legs is used for pulling off bearings, gears and washers in all common sizes for crafts, workshops and industry. The oscillating and curved puller legs adapt to any installation situation and can be used universally due to the adjustable clamping depth. The 3-arm design guarantees an even load distribution and thus a particularly secure hold on the part to be extracted.
Range of Application: For pulling off bearings, gear wheels and discs
Features:
- Adjustable puller legs for individual adjustment of the clamping depth thanks to multiple holes in the puller legs
- Oscillating puller legs offer a wide range of adjustment possibilities
- Safe positioning of the spindle due to rotatable spindle tip both on smooth surfaces and for centring (Switch Technology)
- 3-arm design ensures an even distribution of force and allows for greater pull-off forces
- Anti-slip device on the spindle head for safe working with spanners
- Spindle run-out to protect the thread
- Apply the puller leg to the part to be removed from the outside
- Swing the claws under the part
- Pull the spindle manually to fix it
- Move the hexagon on the spindle head with a ratchet or a combination spanner until the component is loosened
- 209-02-190-S_3 Pulling legs (set)
- 202-2-T_Traverse
- 621220_Mechanical pressure spindle
