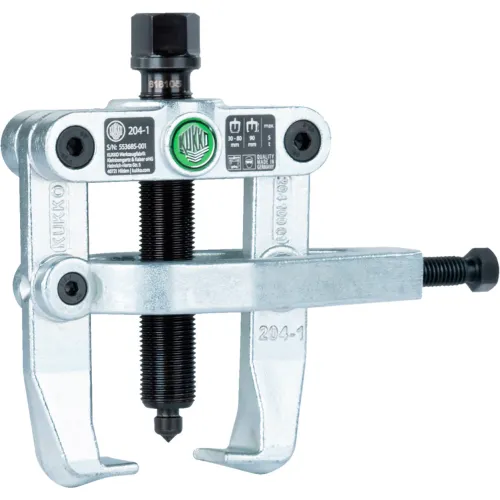

The 2-arm "Cobra" bearing puller with side clamp is used to pull off particularly tight ball bearings, bearing rings and workpieces. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. Thanks to the clamp, the contact pressure of the puller legs is increased many times over. When the clamp is tightened, the sharp claws of the puller legs grip under the part to be pulled off and loosen it even before the actual pulling process.
Range of Application: For extracting particularly tightly fitted ball bearings, bearing rings and workpieces
Benefits:
- Lateral clamp ensures that the puller legs are pressed particularly firmly against the part to be pulled off
- Slim design of the legs makes it possible to reach places that are difficult to access
- 2-fold application of force from above and sideways guarantees 100% secure grip
- Anti-slip device on the spindle head for safe working with spanners
- Spindle run-out to protect the thread
- Apply the puller leg to the part to be pulled off from the outside
- Push the claws under the part
- Pull the spindle manually to fix it
- Move the hexagon on the spindle head with a ratchet or a combination spanner until the component is loosened
- 204-1-90-P_2 Pulling hook (pair)
- 204-1-T_Traverse
- 204201_Clamping clamp complete
- 204101_Clamping clamp complete
- Clamping depth of external puller [mm]: 90 mm
- Width across flats [mm]: 19 mm
- Span outside pull-off (min.) [mm]: 6 mm
- Span outside pull-off (max.) [mm]: 80 mm
- Hook root thickness at the tip (claw thickness K) [mm]: 4 mm
- Hook base width (claw width J) [mm]: 22 mm
- Hook base depth usable (claw depth usable O) [mm]: 12 mm
- Total hook root depth (total claw depth H) [mm]: 22 mm
- Total claw thickness (L+1mm) [mm]: (claw distance to base surface): 8-1/2 mm
- Max. tractive force [t]: 5
- Max. tensile force [kN]: 50 kN
