IKO

Model # :WBB1309669

MPN #: CRY12VUU

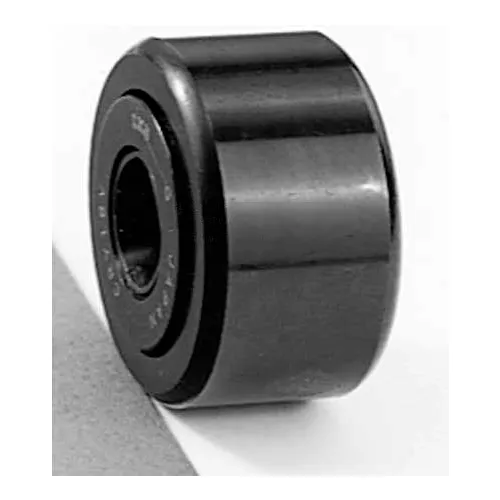

IKO Roller Follower- Full Comp- Inch, CRY12VUU, Double Sealed, 3/4" OD

Product Description
IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

PRICE
$22.75

Min. purchase quantity is 3
3
3
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width14.288 (.5625) mm
Static Load Rating12300 N
Outer Ring Width12.700 (1/2) in
Outside Dimension Tolerance+0 / -0.025 mm
Outside Dimension19.050 (3/4) in
Tolerance Outer Ring Width+0 / -0.130
Outer Ring Corner Radius Min0.794 (1/32)
Bore Diameter6.350 (1/4) in
Bore Tolerance+0.005 / -0.010
Side Plate OD (A)14.4 (.567) in
Tolerance Overall Width+0.130 / -0.250

Product Details

Shaft Diameter Press Fit6.353 to 6.363
Retainer MaterialNone
Bearing StyleCylindrical OD
Prepacked GreaseYES
Shaft Diameter Drive Fit6.348 to 6.358
Shaft Diameter Push Fit6.332 to 6.342
Manufacturers Part NumberCRY12VUU
Oil Hole & GrooveAt inner ring
BrandIKO
TypeDouble Sealed
Dynamic Load Rating (N)8710
SeriesCRY
Needle ConstructionFull Compliment
Radial Clearance0.035 to 0.060
Track Capacity4490 N
DescriptionRoller Follower - Full Compliment - Inch Series
