IKO

Model # :WBB1309667

MPN #: CRY64VUU

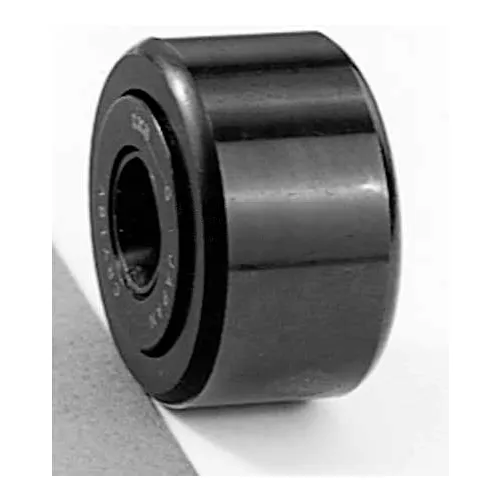

IKO Roller Follower- Full Comp- Inch, CRY64VUU, Double Sealed, 4" OD

Product Description
IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

PRICE
$209.95

1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width58.738 (2.3125) mm
Static Load Rating317000 N
Outer Ring Width57.150 (2-1/4) in
Outside Dimension Tolerance+0 / -0.025 mm
Outside Dimension101.600 (4) in
Tolerance Outer Ring Width+0 / -0.130
Outer Ring Corner Radius Min2.381 (3/32)
Bore Diameter31.750 (1-1/4) in
Bore Tolerance+0.005 / -0.010
Side Plate OD (A)71.0 (2.797) in
Tolerance Overall Width+0.130 / -0.250

Product Details

Shaft Diameter Press Fit31.758 to 31.770
Retainer MaterialNone
Bearing StyleCylindrical OD
Prepacked GreaseYES
Shaft Diameter Drive Fit31.747 to 31.760
Shaft Diameter Push Fit31.727 to 31.740
Manufacturers Part NumberCRY64VUU
Oil Hole & GrooveAt inner ring
BrandIKO
TypeDouble Sealed
Dynamic Load Rating (N)142000
SeriesCRY
Needle ConstructionFull Compliment
Radial Clearance0.045 to 0.070
Track Capacity113000 N
DescriptionRoller Follower - Full Compliment - Inch Series
