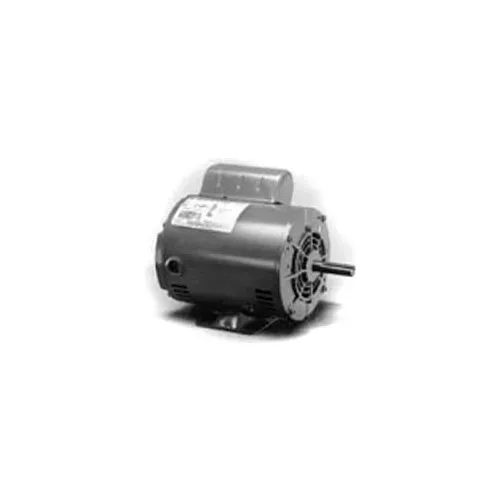

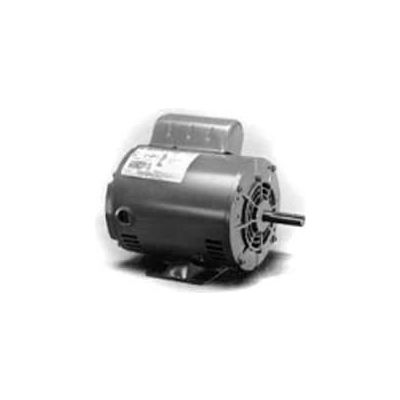

Marathon Motors, S014, 056C17D2054, 3/4HP, 1800RPM, 115/230V, 1PH, 56 FR, DP

Actual product may differ from image shown

Marathon Motors, S014, 056C17D2054, 3/4HP, 1800RPM, 115/230V, 1PH, 56 FR, DP

Item #: WBB870751

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $224.95

Save $11.25 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors, S014, 056C17D2054, 3/4HP, 1800RPM, 115/230V, 1PH, 56 FR, DP

Marathon's Single Phase extensive line of Special Purpose motors are available in ODP construction and Foot Mounted. Horsepower sizes available from stock range from 1/4 HP through 5 HP.

  • HORSEPOWER 3/4
  • ENCLOSURE DP
  • FRAME 56
  • MOUNTING Rigid
  • NAMEPLATE RPM 1800
  • PHASE 1
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 115/230
  • DUTY Continuous
  • SERVICE FACTOR 1
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • WEIGHT 24
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Open/Drip Proof
  • IP CODE 22
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # S014
  • BRAND Marathon Motors
  • STARTING TYPE Cap Start Ind Run
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 ONLY
  • NEMA DESIGN NO DESIGN CODE
  • KVA-CODE J
  • FL AMPS 10.4/5.2
  • INSULATION CLASS B
  • FL EFFICIENCY 70
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6203
  • 60 HERTZ kW 0.56
  • MODEL NUMBER 056C17D2054
