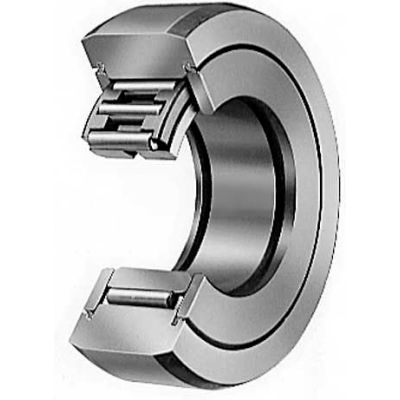

IKO Separable Roller Follower- Metric, NAST15ZZUUR, Crowned OD, Double Sealed, 15 mm Bore, 35 mm OD
IKO Separable Roller Follower consists of inner ring, needle roller cage, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. These parts can be easily separated providing an easy handling. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Double Sealed followers (suffix ZZUU & ZZUUR) come with pre-packed grease. Since no grease is provided for Double Shielded (suffix ZZ & ZZR), adequate lubrication must be added. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.
IKO Separable Roller Follower consists of inner ring, needle roller cage, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. These parts can be easily separated providing an easy handling. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Double Sealed followers (suffix ZZUU & ZZUUR) come with pre-packed grease. Since no grease is provided for Double Shielded (suffix ZZ & ZZR), adequate lubrication must be added. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.
Weights & Dimensions
- Bore Tolerance +0 / -0.008
- Outside Dimension 35 in
- Width 16 mm
- Tolerance Outer Ring Width +0 / -0.120
- Crown Radius (R) 500 in
- Outer Ring Width 15.8 in
- Side Plate OD (A) 29 in
- Outside Dimension Tolerance +0 / -0.050 mm
- Tolerance Overall Width +0 / -0.120
- Bore Diameter 15 in
- Static Load Rating 14300 N
Product Details
- Prepacked Grease YES
- Type Double Sealed
- Oil Hole & Groove At inner ring
- Needle Construction Caged
- Bearing Style Crowned OD
- Dynamic Load Rating (N) 12400
- Description Separable Roller Follower - Metric Series
- Shaft Diameter H6 Fit +0 to -0.011
- Track Capacity 3060 N
- Retainer Material Pressed Steel
- Brand IKO
- Series NAST
- Shaft Diameter G6 Fit -0.006 to -0.017
- Manufacturers Part Number NAST15ZZUUR
- Radial Clearance 0.010 to 0.030
