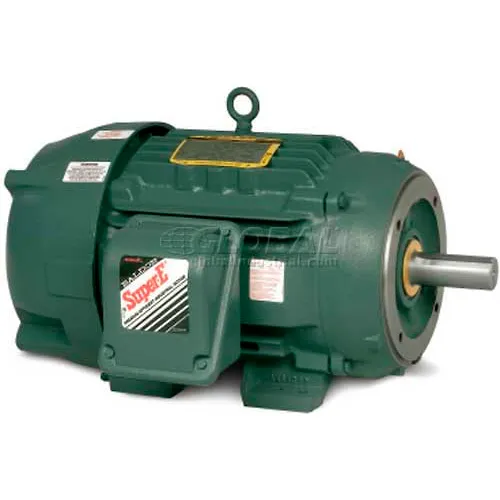

Baldor-Reliance Severe Duty Motor, CECP83660T-4, 3 PH, 3 HP, 460 V, 3450 RPM, TEFC, 182TC Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants. Features Built to 841XL design Upgraded electrical and mechanical design with NEMA Premium® efficient winding Inpro/Seal® VBX (thru 210 frame) VBXX bearing isolators on fan and drive end ...

Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve ...

Baldor-Reliance Motor, .25HP,3450RPM,1PH,60HZ,42,3316L,TEFC,F1 Features: Heavy guage steel frames Ball bearings Base is seam welded to frame Snap Action starting switch for reliability Typical Applications: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

Baldor-Reliance Motor, .33HP,3450RPM,1PH,60HZ,48,3413L,TEFC,F1 Features: Heavy guage steel frames Ball bearings Base is seam welded to frame Snap Action starting switch for reliability Typical Applications: General purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc.

Baldor-Reliance Motor, ... Features: Super-E® Premium efficient windings 460 Volt 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal Moisture resistant ISR® (Inverter Spike Resistant®) copper windings Class F insulation Stainless steel nameplate and corrosion resistant hardware Tropicalized 5 year warranty Typical Applications: Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other ...
