Marathon Motors

Model # :WBB869878

MPN #: E611

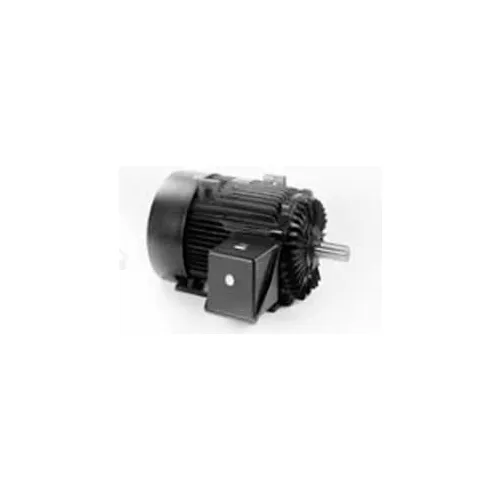

Marathon Motors Severe Duty Motor, E611, 364TSTFS6501, 60HP, 460V, 3600RPM, 3PH, 364TS FR, TEFC

Product Description
Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

PRICE
$8,699.00

1
1
Free Shipping Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight942 lbs
Opposite End Bearing Size6312
Drive End Bearing Size6312

Product Details

60 Hertz kW45 kW
KVA CodeG
IP Code54
60 Hertz RPM3600 rpm
Motor RPM 60 Hertz3600 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberE611
EnclosureTEFC
Service Factor1.15
Bearing Drive End6312
BrandMarathon Motors
RPM3600 rpm
Hazardous LocationDIVISION 2 T2B
Insulation ClassF
Horsepower60 HP
OrientationHorizontal
Frame364TS
Starting TypeLine or Inverter
Inverter Speed RangeConstant 2:1
Enclosure TypeTotally Enclosed
Voltage460 V
Full Load Efficiency94.5
Full Load Amps67 FLA
DutyContinuous
Ambient Temperature40 °C
RPM Range3001-3600 rpm

Compliance & Certifications

CSA CertifiedY
CE ApprovedY
NEMA DesignB
ULRecognized Construction
