Marathon Motors Severe Duty Motor, W530, 213THTS9001, 7.5HP, 460V, 3600RPM, 3PH, 213T FR, TENV

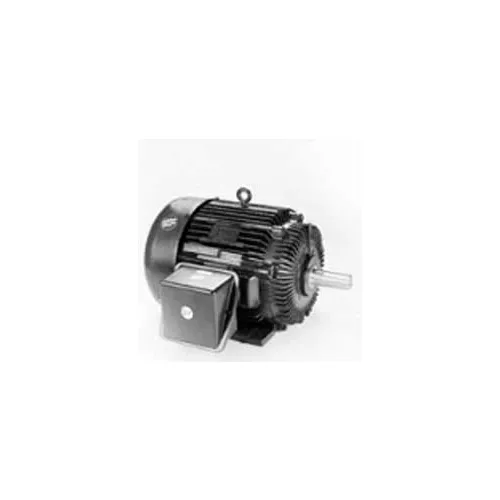

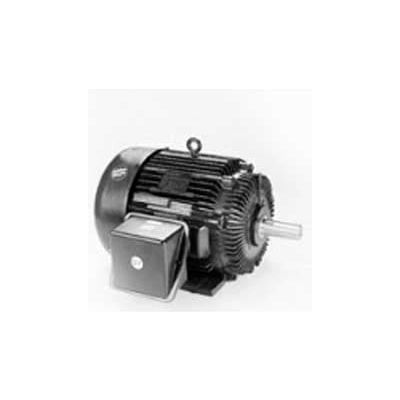

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W530, 213THTS9001, 7.5HP, 460V, 3600RPM, 3PH, 213T FR, TENV

Item #: WBB869792

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,136.00

$189.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, W530, 213THTS9001, 7.5HP, 460V, 3600RPM, 3PH, 213T FR, TENV

Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 7 1/2
  • ENCLOSURE TENV
  • FRAME 213T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • WEIGHT 191
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W530
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 2:1
  • FL AMPS 8.9
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6307
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6307
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 91.7
  • KVA-CODE H
  • is_motor Yes
  • 60 HERTZ kW 5.6
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 213THTS9001
