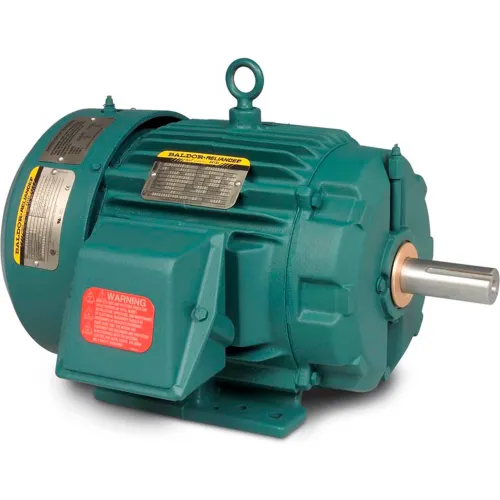

Baldor-Reliance Severe Duty Motor, ECP83769T-5, 3 PH, 7.5 HP, 575 V, 3510 RPM, TEFC, 213T Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features

• Built to 841XL design
• Upgraded electrical and mechanical design with NEMA Premium® efficient winding
• Inpro/Seal® VBX (thru 210 frame)
• VBXX bearing isolators on fan and drive end shaft extensions
• Epoxy paint provides IP56 enclosure
• Stainless breather drains
• Proprietary cast iron frames for reduced vibration and noise
• Terminal lugs on motor leads
• 5-year warranty

Application(s)

• Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
