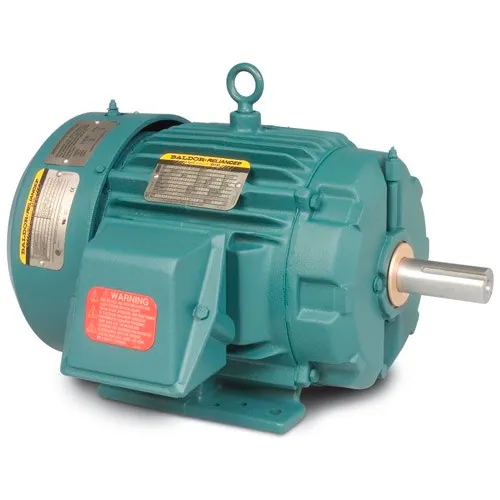

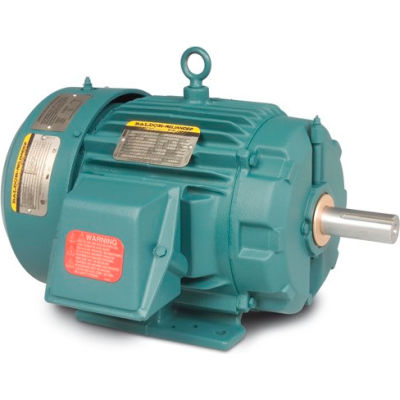

Baldor-Reliance Motor VECP82394T-4, 15HP, 3510RPM, 3PH, 60HZ, 254TC, 0934M, TEFC, F

Actual product may differ from image shown

Baldor-Reliance Motor VECP82394T-4, 15HP, 3510RPM, 3PH, 60HZ, 254TC, 0934M, TEFC, F

Item #: WBB391327

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,349.00 up to 36% OFF

Price: $3,417.00

$569.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Free Shipping

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor, 15HP,3510RPM,3PH,60HZ,254TC,0934M,TEFC,F

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Weights & Dimensions

  • Dimension C 25.19 in
  • Opposite End Bearing Size 6309
  • Weight 239 lbs

Product Details

  • Horsepower 15 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 3
  • Max KVAR 1.6
  • Full Load Efficiency 91.7
  • Brand Baldor-Reliance
  • Number of Stator Slots 36
  • Number of Rotor Bars 28
  • Full Load Amps 17 FLA
  • Design Code B
  • Motor RPM 60 Hertz 3510 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VECP82394T-4
  • Power Factor 91
  • Mounting Location No Mounting
  • Bearing Drive End 6309
  • Temp Code T3
  • RPM 3510 rpm
  • Poles 2
  • Grease POLYREX EM
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code G
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • Voltage 460 V
  • Frame 254TC
  • Service Factor 1.15
  • Efficiency 2 90.2
