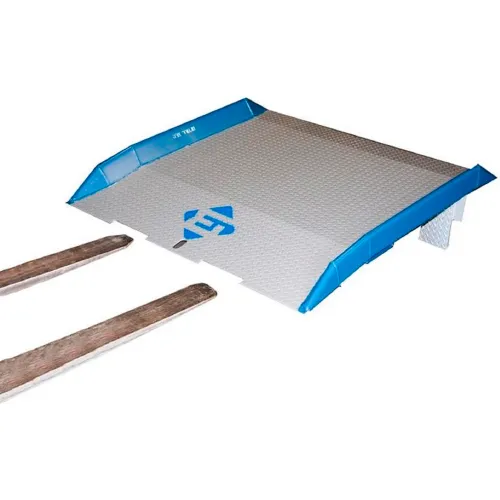

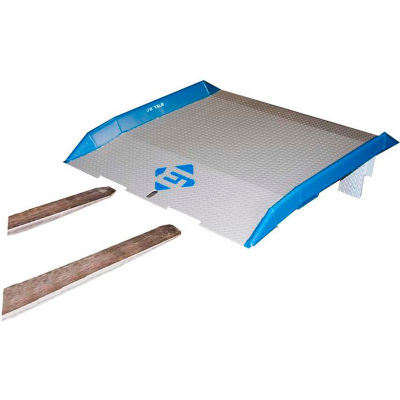

Bluff® 20SB6072 Speedy Board® Dock Board 60 x 72 20,000 Lb. Cap.

Bluff® 20SB6072 Speedy Board® Dock Board 60 x 72 20,000 Lb. Cap.

Item #: WB985078

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,187.00

$531.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Bluff® STEEL DOCK BOARD WITH FORKLIFT TINE NOTCHES

Bluff® Speedy Board® Dock Board offers integral Fork Cut-outs for Easy and Safe Maneuvering.

This dock board allows the fork lift driver to move, set and retrieve the dock plate without leaving the seat of the forklift. The leading edge of the board has twin "notched" holes that allow the driver to scoop the board and move it to and from the dock without having to raise lifting loops or secure chains into place. This saves time and increases productivity at high-traffic cycle dock operations, and enhances dock safety since the driver is most at risk when outside the forklift cab. All welded steel construction with anti-skid diamond tread surface provides maximum safety. Loading dock board has tapered curbs that help prevent tire damage and beveled ends offer smooth entry and exit. Safety stop on underside of the plate fits snugly between truck and dock so it will not shift under load. Complies with OSHA spec. 1910.30(A) and ANSI spec. MH30.2.

20,000 Lb. Capacity Dock Board has a 7° bend 17½" from the truck end and a 9° bend 8" from the dock end.

NOTE:
CAPACITY is the combined weight of your maximum pallet load and lift truck. Capacity is rated for a single shift with equipment speeds of 3 mph maximum.

WIDTH should be 12" greater than lift truck or load. Usable width is 6" less than overall width.

Stackers and other narrow aisle loaders should not be used on a dockboard. Refrigerated trucks require special dock plates; please call for information.

** The HT" DIFFERENCE UP is the height difference above the dock.

Product Details

  • Assembly Required Assembled
  • Type Dock Board
  • Brand Bluff Manufacturing
  • Material Steel
  • Manufacturers Part Number 20SB6072

Weights & Dimensions

  • 14% Grade Height Inches Up 8-1/2 in
  • Width 60 in
  • Length 72 in
  • 19% Grade Height Inches Up 11 in
  • Weight Capacity Range 15,001 to 20,000 lbs
  • Weight Capacity 20,000 lbs
  • Length Range 61 to 100 in
  • Width Range 51 to 60 in
  • Weight 702 lbs
Customer Review

4.0

  • 5 Star

    0
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: January 10, 2014

    Dockboard Safety
    Your review:
    This dockboard works as we expected except that our forklift has short forks, and was unable to lift the dockboard without it tipping of the end of the forks. I would recommend the manufacturer adding steel retaining straps under the dockboard to secure the dockboard to the forklift forks.
Product Q & A

There are no questions for this product.
