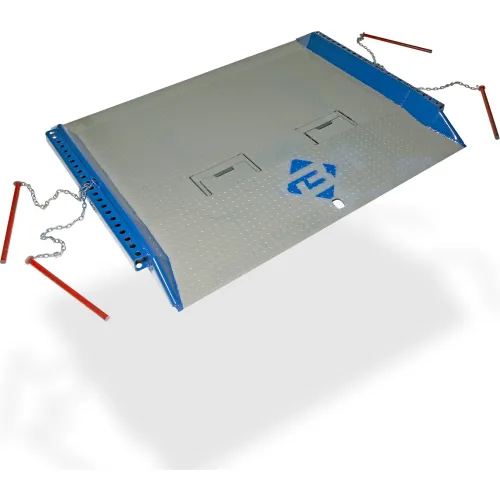

Bluff® 20C6084 Steel Red Pin Heavy Duty Dock Board 60 x 84 20,000 Lb. Cap.

Bluff® 20C6084 Steel Red Pin Heavy Duty Dock Board 60 x 84 20,000 Lb. Cap.

Item #: WB985238

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,598.52 up to 4% OFF

Price: $3,442.00

$573.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Bluff® STEEL RED PIN HEAVY DUTY DOCK BOARD

Dual Positioning Pins on Each Side Offer Added Flexibility and Safety!

This Dock Board is the perfect solution for difficult angled parking situations when a trailer just can't get up to the dock (known as park-out). The dock board is even flexible enough to handle refrigerated trailers and overseas containers. Full-length side pockets and four 1" diameter high-strength locking pins on 2" centers offer increased adjustability and safety. Trucks below dock level are able to utilize the board without having to turn it around. Fold-down 11"W x 4-½"H lifting loops (on 27" centers) allow for easy forklift transport and positioning. Contoured curbs prevent runoffs and forklift tire damage. All-welded steel construction for high-traffic, multiple-shift docks. Includes one 7° bend 17-½" from the dock end and one 9° bend 8" from the truck end. Complies with OSHA spec. 1910.30(A) and ANSI spec. MH30.2.

NOTE:
CAPACITY is the combined weight of your maximum pallet load and lift truck. Capacity is rated for equipment speeds of 3 mph maximum. Stackers and other narrow aisle loaders should not be used on a dock board.

WIDTH should be 12" greater than lift truck or load. Usable width is 6" less than overall width.

** The HT" DIFFERENCE UP is the height difference above the dock.
14% Grade applies to Pallet Trucks and Electric Forklifts. 19% Grade applies to Gas Powered Forklifts.

Weights & Dimensions

  • Pin Length 30 in
  • 14% Grade Height Inches Up 10 in
  • Width 60 in
  • Length 84 in
  • 19% Grade Height Inches Up 13 in
  • Weight Capacity Range 15,001 to 20,000 lbs
  • Weight Capacity 20,000 lbs
  • Length Range 61 to 100 in
  • Width Range 51 to 60 in
  • Weight 877 lbs

Product Details

  • Assembly Required Assembled
  • Type Dock Board w/ Lock Pins
  • Brand Bluff Manufacturing
  • Material Steel
  • Manufacturers Part Number 20C6084
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.
