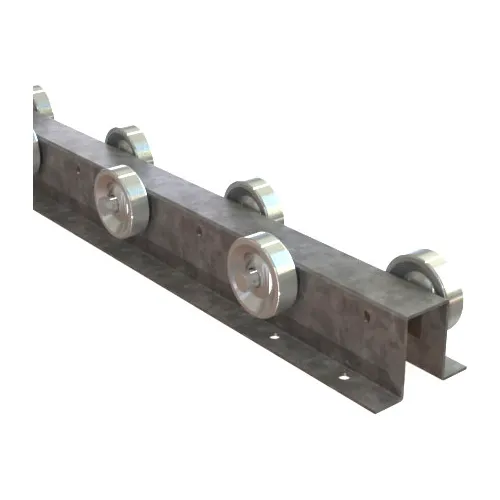

Omni Metalcraft Straight Flow Rail FRWS1.94-4-3-10 - Top Hat 2-17/32" OAW 4 WPF Staggered 3" Centers

Omni Metalcraft ALUMINUM 10' LONG STRAIGHT SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths. Capacity is 50 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set ...

Ashland Conveyor Products produces several models of flow rails with skatewheels. Skatewheel flow rail is well suited for storage flow racks. For pallet flow 100 Lb. capacity wheels are recommended. Construction: 1" x 2-1/2" x 1" 12 ga galvanized steel frames. Inline wheels are on 3" centers and staggered wheels are on 1-1/2" centers. Capacities: Wheels are 1-15/16" diameter with ¼" bore and have either 75 Lb or 100 Lb capacity. FR4 flow rail capacities (evenly distributed non-impact load): 36 lbs. per foot with supports on 10' centers. 260 lbs. per foot with supports on 5' centers. Need ...

STEEL GUARD RAIL KIT FOR Omni Metalcraft 45 DEGREE CURVED SECTION SKATE WHEEL CONVEYORS Helps prevent products from falling off conveyor. Side rails are 1-5/8" x 1" x 14-gauge galvanized channel steel and can be set approximately 9-1/4" above conveyor. Kit contains two guide rails and four adjustable rail mounts. Note: This is for Omni Metalcraft Curved Conveyors only; at the time of order Omni Metalcraft will need to know the Part # of the Omni Metalcraft Conveyor it is being applied to.

Omni Metalcraft STEEL 10' LONG STRAIGHT SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 12 gauge galvanized steel channel frame with hook and rod coupling is designed for maximum strength to move the heaviest items. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths. Capacity is 65 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they ...

Omni Metalcraft ALUMINUM 5' LONG STRAIGHT SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. Capacity is 50 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.
