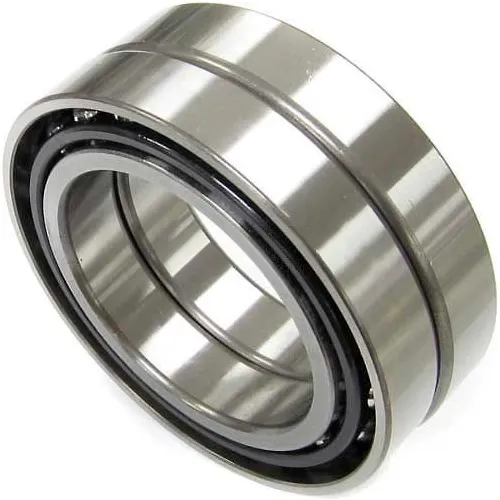

NACHI Super Precision Bearing 7017CYDUP4, Universal Ground, Duplex, 85MM Bore, 130MM OD
NACHI Features
NACHI Features
- Two single row angular contact ball bearings (15° contact angle P4) are assembled to provide a high degree of rigidity in both radial & axial directions
- These Universal Flush Ground bearings can be mounted in DB, DF or DT
- Meets the needs of machine tool manufacturers for precision
- These bearings function at lowest possible temperature for wide range of speeds & operating loads
- BRAND Nachi
- BEARING STYLE Duplex
- BORE DIAMETER MILLIMETERS 85
- OUTER DIAMETER MILLIMETERS 130
- WIDTH MILLIMETERS 22 X 2
- DYNAMIC LOAD RATING (N) 98,500 per pair
- STATIC LOAD RATING (N) 118,000 per pair
- CAGE TYPE Molded Polyamide
- MANUFACTURERS PART NUMBER 7017CYDUP4
- PRELOAD Light
- TOLERANCE P4 (ABEC7)
- SERIES 7000
- CONTACT ANGLE 15
- MAX SPEED / OIL (RPM) 8000
Customer Review
Product Q & A
There are no questions for this product.
NACHI Super Precision Bearing 7017CYDUP4, Universal Ground, Duplex, 85MM Bore, 130MM OD
$929.0
