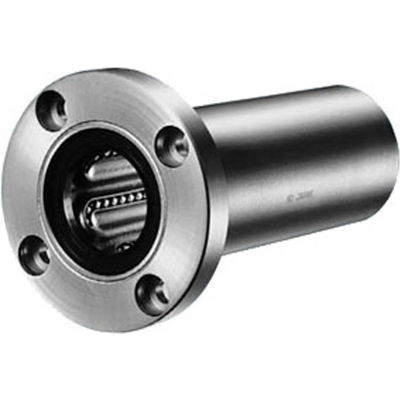

NB Corp SWF20GW 1-1/4" ID Round Flange Double-Wide Type Linear Bearing W/Resin Retainer, Steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
Weights & Dimensions
- Dimension T .375"
- Dimension D 2"
- DR Tolerance 0-0.0006"
- DR 1.25"
- Dimension L 5
- Inside Dimensions 1-1/4
- Flange PCD 2.5625"
- Df 3.125"
- X x Y x Z .2813 x .4063 x .2656 in
- Dynamic Weight Load 562.02 lbs
- Static Weight Load 1234.2 lbs
- D Tolerance 0-0.0009"
Product Details
- Description Round Flange Double-Wide Type Linear Bearing W/Resin Retainer
- Number of Ball Circuits 6
- Brand NB Corporation
- Material Steel
- Manufacturers Part Number SWF20GW
