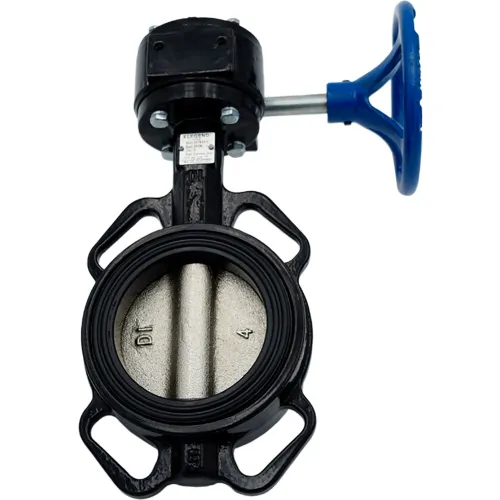

Legend Valve® T-337DI-G Butterfly Valve with BUNA Seals & Gear Operator, 4" Wafer

3" T-335AB-G Ductile Iron Wafer Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Aluminum Bronze Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Equipped with a pre-installed gear operator and handwheel Cold Working Pressure (CWP): 200 psi Working Steam Pressure (WSP): 125 psi Compatible with steam up to 250° F at 125 psi or less Flange ...

3" T-335DI-G Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Ductile Iron Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Equipped with a pre-installed gear operator and handwheel Cold Working Pressure (CWP): 200 psi Flange connection features of the valve's body conform to ANSI class 125/150 flange dimensions Manufactured in conformance to the ...

8" T-337AB-G Ductile Iron Wafer Butterfly Valve, Aluminum Bronze Disc, Gear Operated -BUNA Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Features: Cold Working Pressure (CWP): 200 psi Maximum service temperatures with pressures: T-337AB & T-337AB-G: Compatible with media types other than steam up to 180° F at 200 psi or less ...

4" T-337AB Ductile Iron Wafer Butterfly Valve, Aluminum Bronze Disc, 10 Position Lever Handle -BUNA Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Heavy-duty lockable ten-position lever handle. Features: Cold Working Pressure (CWP): 200 psi Maximum service temperatures with pressures: T-337AB & T-337AB-G: Compatible with media types ...
