Hyundai T-Frame Motor IEEE100-18-405T, TEFC, Rigid, 3 PH, 405T, 460V, 114.1 FLA, RB

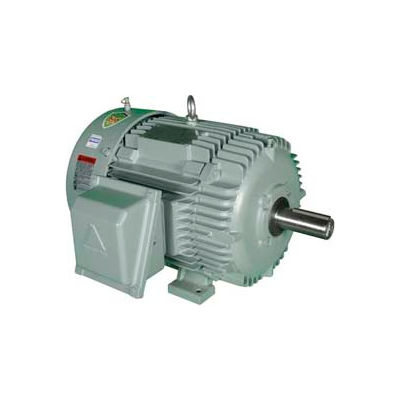

Actual product may differ from image shown

Hyundai T-Frame Motor IEEE100-18-405T, TEFC, Rigid, 3 PH, 405T, 460V, 114.1 FLA, RB

Item #: WBB764099

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $9,074.00

$1,512.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Hyundai T-Frame Motor IEEE100-18-405T, TEFC, Rigid, 3 PH, 405T, 460V, 114.1 FLA, RB

Features

  • 1 - 250 HP
  • Parker Hannifan ProTech IP66 labrynth seals on
  • 3600, 1800 and 1200 RPM
  • Both drive-end and opposite drive-end bearings
  • Single voltage, 460 volts
  • CSA Certified for Class I, Division 2,
  • TEFC enclosure
  • Groups A, B, C, D
  • Dual rated service factor
  • Inverter duty, 10:1 CT / 1000:1 VT
  • 1.15 for 40C / 1.0 for 65C
  • Inverter shield insulation and inverter grade
  • Class F insulation with Class H varnish,
  • Magnet wire meets or exceeds NEMA MG-1 Part 31
  • Double dip and bake cycles
  • For exceptional corona and transient protection
  • Rigid base
  • Class B temperature rise
  • Full compliance with IEEE-841, version 2009
  • IP55 degree of protection
  • Meets or exceeds EISA 2007 efficiency
  • NEMA design B torque
  • Requirements defined in NEMA MG-1
  • IEEE-841 motor test report supplied with each motor
  • Table 12-12
  • 5 year warranty

  • HORSEPOWER 100
  • ENCLOSURE TEFC
  • FRAME 405T
  • BRAND Hyundai
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • COMPATIBLE WITH/REPLACES Baldor ECP844T-4, WEG 10018ST3QIERB405T-W22
  • SERVICE FACTOR 1.15
  • ENCLOSURE TYPE Totally Enclosed
  • RPM RANGE 1701-1800
  • FL EFFICIENCY 95.4
  • is_motor Yes
  • WEIGHT LBS. 1110
  • MANUFACTURER PART # IEEE100-18-405T
  • INCLUDES Roller Bearing On Drive End
  • FL AMPS 114.1
  • APPLICATIONS Belted
