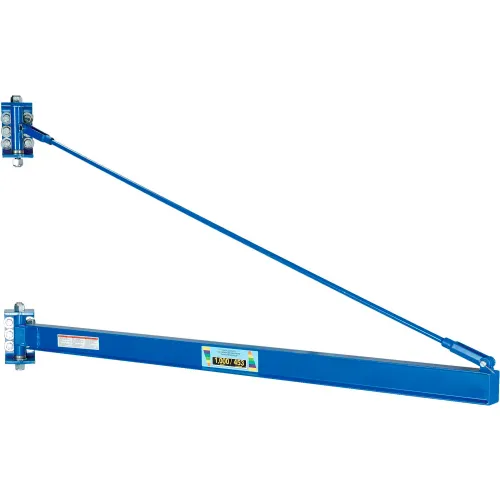

Tie Rod Jib Crane This Tie Rod Jib achieves maximum floor space and utilizes wasted air space. Mount to walls or columns to increase hook coverage over workstations. Unit rotates 180°. All steel construction provides years of service. 85" cable support length. 1,000 lb capacity.
Share
Spec Sheet
High-Ceiling Tie Rod Wall Mount Jib Crane JIB-HC-10 1000 Lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$766.00
1
1
Bulk Pricing
Quantity
Pricing
Buy 1 unit - 2 units
766.00
Buy 3+ units
695.00Save $71.00 (9%)
Ships in 40 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 89 in |
| Height | 43 in |
| Weight Capacity | 1000 lbs |
| Weight | 204 lbs |
| Span | 7-1/2' |
| Flange Width | 2-2/3 in |
| I-Beam Height | 4 in |
Product Details
| Type | Wall Mount Jib Crane |
| Color | Blue |
| Style | Top Braced |
| Material | Steel |
| Description | Tie Rod Jib - High Ceiling |
| Manufacturers Part Number | JIB-HC-10 |
| Brand | Vestil |
