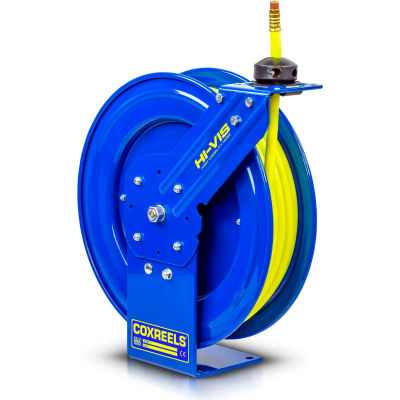

 Coxreels SH-N-350-HV 3/8" x 50' 300PSI Hi-Vis Heavy Duty Spring Retractable Low Pressure Hose Reel

Coxreels SH-N-350-HV 3/8" x 50' 300PSI Hi-Vis Heavy Duty Spring Retractable Low Pressure Hose Reel

Item #: WB535838

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$440.00 up to 12% OFF

Price: $387.95

Save $19.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Coxreels SH-N-350-HV 3/8"x50' 300 PSI Heavy Duty Spring Retractable Low Pressure Hose Reel With High Visibility Hose

COXREELS® SH Series "Super Hub™" spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

External fluid path with machined from solid brass 90° full-flow NPT swivel inlet. Swivel Seals: NITRILE

Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system. Guide arm adjusts to wall, floor, vehicle & overhead positions. Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability. 1" solid steel axle and lubricated precision bearings for smooth rotation.

Enclosed factory tuned and matched cartridge-style spring motor. Non-corrosive stainless steel spring, pawl and zinc plated ratchet. Multi-position lock ratchet mechanism secures hose at desired length.

Features:

  • Professional grade heavy duty steel construction. Durable proprietary CPC™ powder coat process. Rolled edges & ribbed discs provide strength & safety. Leading 2-year manufacturer's limited warranty. Made in the U.S.A. - Sold & Supported Worldwide
  • SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated. precision bearings.
  • 1" Permanently Lubricated Precision Bearings

Product Specifications

  • LENGTH INCHES19.5
  • WIDTH INCHES8.25
  • HEIGHT INCHES21.25
  • SERIESSH
  • HOSE MATERIALPVC
  • BRANDCoxreels®
  • TYPEHose Reel
  • INLET3/8
  • MAX. TEMPERATURE°F 158
  • CONSTRUCTIONSteel
  • COLOR FINISHBlue
  • MANUFACTURERS LIMITED WARRANTY YEARS2
  • HOSE ID"3/8
  • OPEN OR ENCLOSED CHASSISOpen
  • MANUFACTURERS PART NUMBERSH-N-350-HV
  • REEL HOSE LENGTH CAPACITY (FEET)50
  • PSI300
  • HOSE/ CORD LENGTH FEET50
  • TEMPERATURE RANGE°F -40 to 158
  • DRIVE / RETURN TYPESpring Return
  • STYLEOpen Chassis
  • WEIGHT LBS50
  • APPLICATIONAir, Water
  • CABLE/CORD/HOSE INCLUDEDYes
